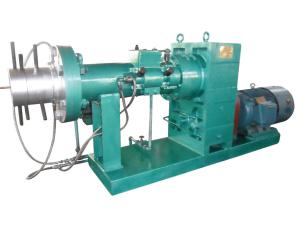

Multifunction 115mm Rubber Extruder Machine 100kgkg/H 420kg/H

Brand Name : SFC

Model Number : XJ-115

Certification : ISO, CE, SGS

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : T/T, L/C

Supply Ability : 50 SETS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Plywood Case Packaging

Compression Ratio : 1.3

Motor Power (KW) : Electromagnetic speed 22KW

Production Capacity (kg/h) : 100-420

Stream Pressure (Mpa) : 0.4-0.6

Size (L×W×H)(mm) : 2390×760×1450

Screw Diameter (mm) : 115

Contact Now

Rubber extruder

1. This rubber extruder is mainly used in rubber factory, tire factory, the score material, chemical additives, plastic plants etc. It mainly used for the mixing of rubber and compounding ingredients, thermal refining and tablet.

2. Rubber extruder is mainly consist of rack, bearing fixed foot, motor, speed reducer, rollers, bearings, safety switches, cooling devices, and electrical control components.

3. Rubber Extruder driving system is speed reducer. Rubber extruder through the work of the roller speed ratio gear reducer output driven around in a certain speed ratio

Prameter/Type	XJ-65	XJ-115B	XJ-120	XJ-150	XJ-200	XJ-250
Forms of Screw and Screw Thread	Double-head equal-depth convergent type	Double-head convergent type	Double-head convergent type	Double-head unequal-depth convergent type	Double-head convergent type	Double-head convergent type
Screw Diameter (mm)	65	115	120	150	200	250
Length-diameter Ratio of Screw(L/D)	4	4.8	4.6	4.43	4.35	4.5
Compression Ratio		1.3		1.34
Rotary Speed of Screw r/min	5.2～52	5.4～54	5.6～55.6	20～26	22.4～67.2	19.7～59.1
Motor Power (KW)	Electromagnetic speed 7.5KW	Electromagnetic speed 22KW	Electromagnetic speed 22KW	Frequency control 55KW/ Motor commutator 8.3-55KW	25-75Motor commutator	Motor commutator 33.3-100
Production Capacity (kg/h)	50～80	100-420	100～450	700-1200	1500-2200	2000-3200
Stream Pressure (Mpa)	0.2-0.3	0.4-0.6	0.2～0.4	0.6	0.6-0.8	0.6-0.8
Cooling Water Pressure (Mpa)	0.2-0.3	0.2-0.3	0.2～0.4	0.2-0.3	0.2-0.3	0.2-0.3
Size (L×W×H)(mm)	1750×550×1100	2390×760×1450	2427×750×1330	3411×814×1470	4564×1800×1750	4950×1150×1483
