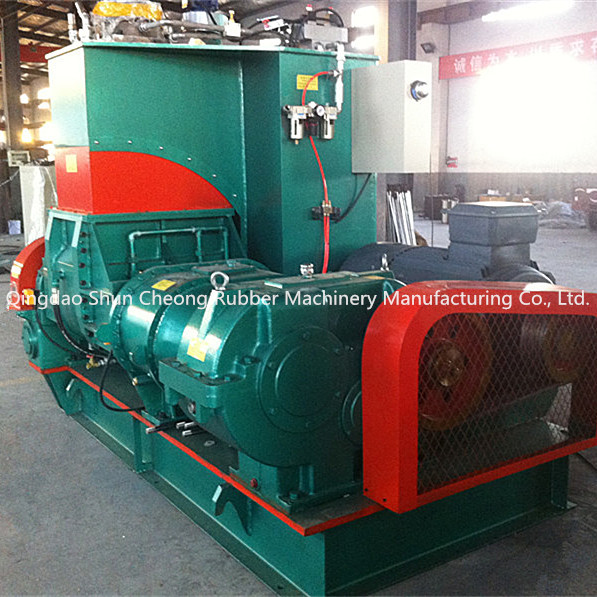

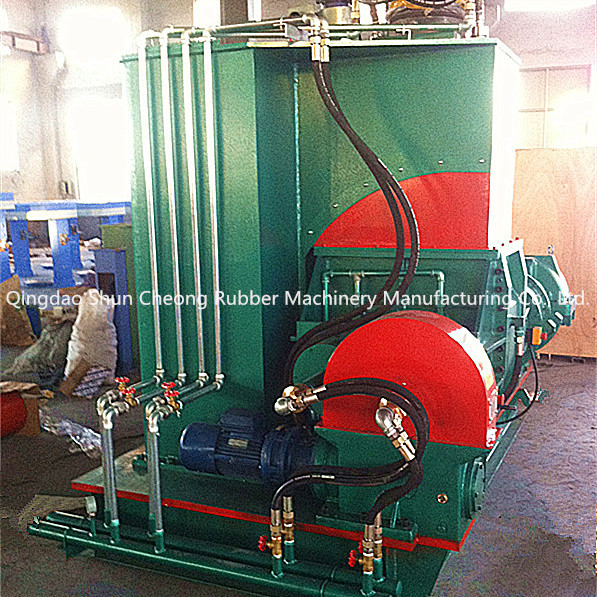

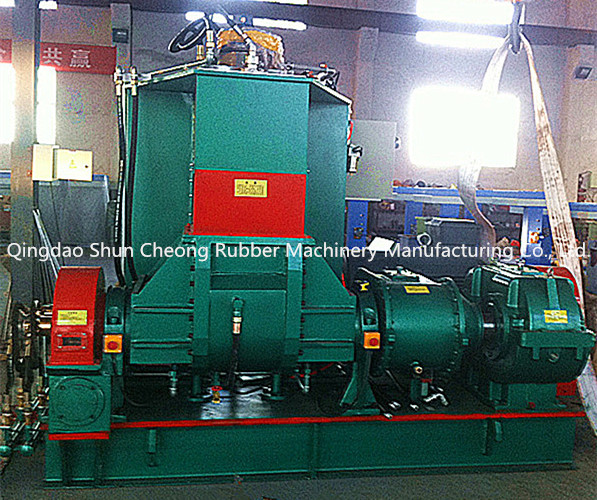

X(S)-75X30 High Efficient Rubber Dispersion Kneader / 75L Rubber Kneader Machine
Product Introduction
1. This machine is a high-tech equipment developed for the mixing of high-power or low-power rubber and plastic products.
2. From the back door charging, mixing rubber room maximum flip 140 ° forward unloading, and according to the customer requirement of process can be arbitrary regulation Angle, facilitate next process of connection.
3. The switch on the "w" type, facilitate materials can be fully mixing rubber or refining.
4. The electric control system the programmable logic controller (PLC), has the alarm, unloading operation, manual/automatic conversion, chain security protection function.
| Model | X(S)N-20x32 | X(S)N-25x32 | X(S)N-35x30 | X(S)N-55x30 | X(S)N-75x30 | X(S)N-110x30 | X(S)N-150x30 | X(S)N-200x30 |
| Total Volume of Mixing Chamber (L) | 45 | 55 | 75 | 125 | 170 | 250 | 325 | 440 |
| Working Volume of Mixing Chamber (L) | 20 | 25 | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving Motor Power (KW) | 37 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Titling Motor Power (KW) | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Rotational Speed of The Rotor (front/rear) (r/min) | 32/27 | 32/27 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air (m³/min) | ≥0.7 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 |
| Pressure of Cooling Water(mixing rubber) (MPa) | 0.2~0.4 | 0.2~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam (plastic mixing) (MPa) | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Dimensions(LxWxH) (mm) | 2675x1650 x2560 | 2675x1650
x2560 | 3200x1900
x2950 | 3230x1927
x2958 | 3325x2615
x3150 | 4075x2712
x3580 | 4250x2750
x4106 | 4250x3400
x4215 |
| Gross Weight (T) | ~4 | ~4.5 | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
About Us
Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.
our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...
Market: our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions.
Our Service
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
